Ghost Buster Column

Home » Ghost Buster Column

Ghost Buster Column OEM Manufacturer

uHPLCs is a supplier of Ghost Buster Column solutions for high performance liquid chromatography (HPLC) analysis.

Our columns are designed to effectively eliminate ghost peaks, which can interfere with accurate and precise results in HPLC analysis. With a wide range of products and technical expertise, uHPLCs have become a trusted provider of ghost peak column solutions for researchers and scientists in various fields.

What Ghost Buster Column Can Do for You ?

A Ghost Buster Column is a specialized guard column for HPLC systems that eliminates unwanted “ghost peaks” caused by impurities in the solvent or mobile phase. It helps by:

Removing Ghost Peaks: Cleans up the baseline, ensuring accurate analysis.
Protecting the Main Column: Traps contaminants, extending the life of the analytical column.
Improving Data Accuracy: Reduces interference, enhancing the reliability of results.
Cost-Effective and Easy to Use: Simple integration into existing HPLC setups.

Overall, it enhances chromatographic performance and prolongs column lifespan.

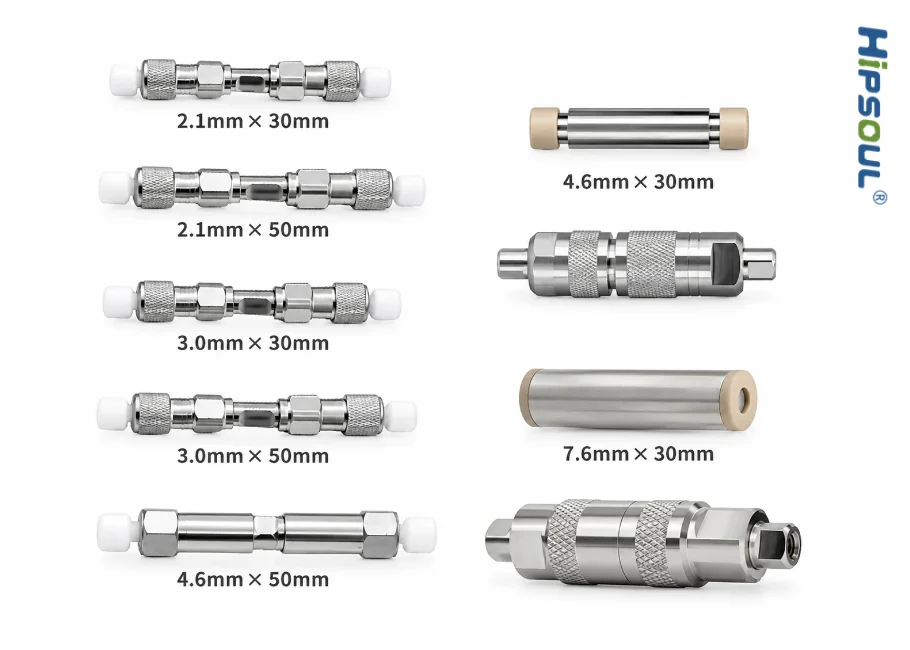

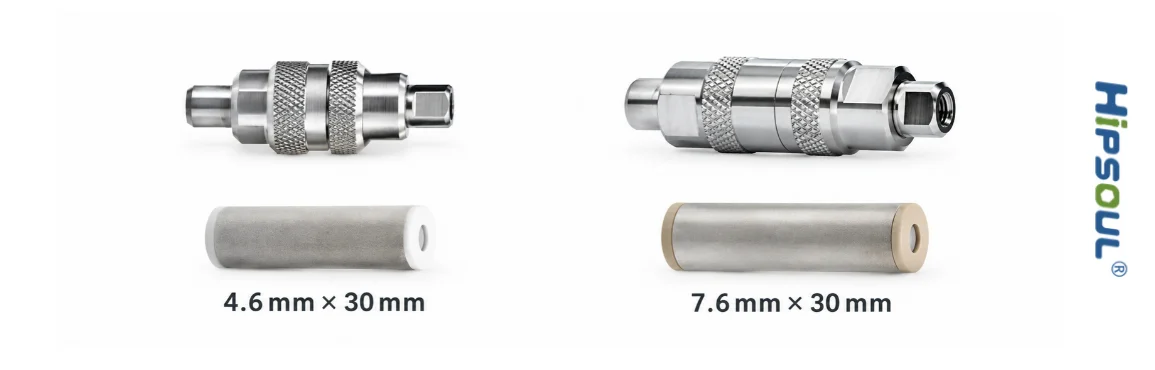

Filter Cartridge for Ghost Buster Column You Can Choose.

Item	Size (ID-L)	Pressure Resistant
HPGPG-021330-1	2.1mm*30mm	≤100MPa
HPGPG-021500-1	2.1mm*50mm	≤100MPa
HPGPG-030330-1	3.0mm*30mm	≤65MPa
HPGPG-030500-1	3.0mm*50mm	≤65MPa
HPGPG-040200-1	4.0mm*20mm	≤35MPa
HPGPG-046500-1	4.6mm*50mm	≤35MPa
HPGPG-076300-1	7.6mm*30mm	≤35MPa

Contact Us Ghost Buster Column Problem

Eliminate ghost peaks and improve your HPLC Analysis – Contact us for expert solutions

Why uHPLCs' Ghost Buster Column

When your HPLC System got some problem, especially, special peek like Ghost, then you can choose our Ghost buster column, and there are some features why choose uHPLCs ghost peak column can help you to make a solution for your problem, please check as following:

Exceptional Peak Shape: Experience unparalleled peak shapes with our Ghost Buster Column, designed to eliminate tailing and improve the resolution of problematic compounds.
Enhanced Selectivity: The column features a unique stationary phase that offers superior selectivity, making it ideal for complex samples and challenging separations.
Long Column Life: Constructed with robust materials, the Ghost Buster Column withstands harsh mobile phases and high throughput conditions, ensuring extended operational life and cost efficiency.
Wide pH Range Compatibility: Operate confidently across a broad pH range from 2 to 9, providing versatility in method development and application adaptability.
Rapid Equilibration: Save time with the column’s rapid equilibration properties, allowing for quicker runs and faster method development cycles.
Consistent Performance: Each column is rigorously tested to ensure batch-to-batch consistency, offering reliable and reproducible results.
Technical Support: Benefit from uHPLCs’ expert technical support team, available to assist with method development, troubleshooting, and optimizing your separations.

These points highlight the distinct advantages of the Ghost Buster Column, making it an appealing choice for laboratories seeking efficiency and reliability in their chromatographic analyses.

Country Export

Production Area

Staff

Low MOQ

Production Time

Effective OEM Service

To OEM (original equipment manufacturer) a ghost peak column to solve the ghost peak problem, the following steps you can consider:

Research: Understand the causes of ghost peaks and the types of columns most effectively eliminate them.
Development: Develop a column that is specifically designed to address ghost peaks. This may involve testing different materials, particle sizes, and column geometries.
Optimization: Optimize the column’s performance through further testing and adjustments.
Validation: Validate the column’s performance using a variety of sample types and conditions to ensure it effectively eliminates ghost peaks in a wide range of applications.

Manufacture: Manufacture the column in large quantities to meet the demand for ghost peak column solutions.
Branding: Brand the column with your company name and information to differentiate it from other ghost peak column solutions on the market.
Marketing and Distribution: Market and distribute the column to target customers and through distribution channels to reach as many customers as possible.
Technical Support: Provide technical support to customers to help them with the installation and use of the column and troubleshoot any issues that may arise.

It is important to note that this process can be quite complex. Working with experienced professionals and HPLC column suppliers with a proven track record of developing and manufacturing high-quality HPLC columns is advisable.

What Clients Say

I've been using the Ghost Buster Column for impurity analysis in my lab, and it has been a game changer. The ability to identify impurities quickly and easily has greatly improved the efficiency of our analysis.

Amanda LeeCEO

As a quality control analyst, I rely heavily on the Ghost Buster Column to monitor the performance of our chromatography equipment. It has proven to be an invaluable tool for ensuring consistent results and detecting any potential issues.

Adam CheiseDesigner

I have been using Ghost Buster Column for method development, which has been incredibly helpful in optimizing the separation of my compounds. The ability to make small adjustments to mobile phase conditions and column temperature has greatly improved the resolution of my peaks.

Floyd StallerCo-Founder

I am impressed with the Ghost Buster Column's ability to detect column aging. It has saved us a lot of time and money by allowing us to replace columns before they start negatively impacting our results.

Floyd StallerCo-Founder

As a researcher in the pharmaceutical industry, I appreciate the Ghost Buster Column's ability to validate the instrument and method we are using. It gives me the confidence that our results are accurate and reliable.

Floyd StallerCo-Founder

HPLC Column FAQ

Why use Ghost Buster Column in HPLC

In Short, In High-Performance Liquid Chromatography (HPLC), a Ghost Buster column, also known as a guard column or pre-column, is used to protect the main analytical column from sample matrix impurities and other contaminants. It is a small, short column packed with the same or similar stationary phase material as the main column but without the analytical column’s analytical length.

The main reasons for using a Ghost Buster column in HPLC are as follows:

1.Column Protection:

The primary purpose of the Ghost Buster column is to protect the more expensive and delicate analytical column from damage caused by particulates, proteins, salts, and other impurities present in the sample. These impurities may accumulate on the analytical column over time and lead to reduced column performance and a shorter column lifespan. The Ghost Buster column acts as a sacrificial column that captures and retains these contaminants before they reach the analytical column.

2. Enhanced Column Life:

By trapping the unwanted substances and debris, the Ghost Buster column helps prolong the life of the analytical column. This increases the column’s overall efficiency, reduces the need for frequent column replacements, and ultimately saves on operational costs.

3. Improved Baseline Stability:

Sample matrix impurities and contaminants can lead to changes in the baseline of chromatograms, causing noise and interfering with accurate peak detection. Using a Ghost Buster column minimizes these effects, leading to better chromatographic resolution and signal-to-noise ratios.

4. Reduced Downtime:

When the Ghost Buster column captures most of the impurities and contaminants, it reduces the need for frequent column cleaning and maintenance. This results in less instrument downtime and improves overall laboratory productivity.

5. Easy Replacement:

Ghost Buster columns are usually less expensive than the analytical columns. Therefore, if the Ghost Buster column becomes fouled or degraded, it can be easily replaced without significant cost implications.

Overall, using a Ghost Buster column in HPLC is a practical and cost-effective approach to extend the life of the analytical column, enhance chromatographic performance, and maintain the integrity of the HPLC system for more reliable and accurate results.

Ghost Buster Column Working Principle

After Know Reason Why use Ghost Buster in HPLC System, Maybe you also interested in Working Principle of Ghost Buster Column.

The working principle of a Ghost Buster column in High-Performance Liquid Chromatography (HPLC) is relatively simple but crucial for the proper functioning of the HPLC system. As mentioned earlier, a Ghost Buster column, also known as a guard column or pre-column, is used to protect the main analytical column from sample matrix impurities and contaminants.

Here’s how the Ghost Buster column works:

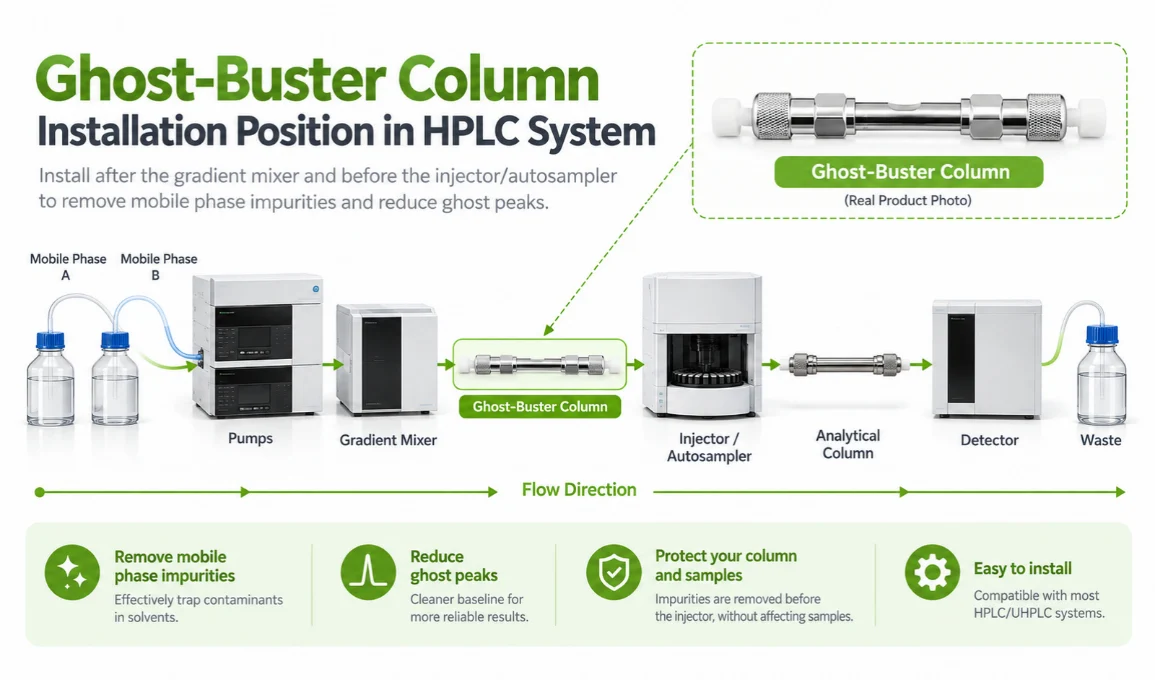

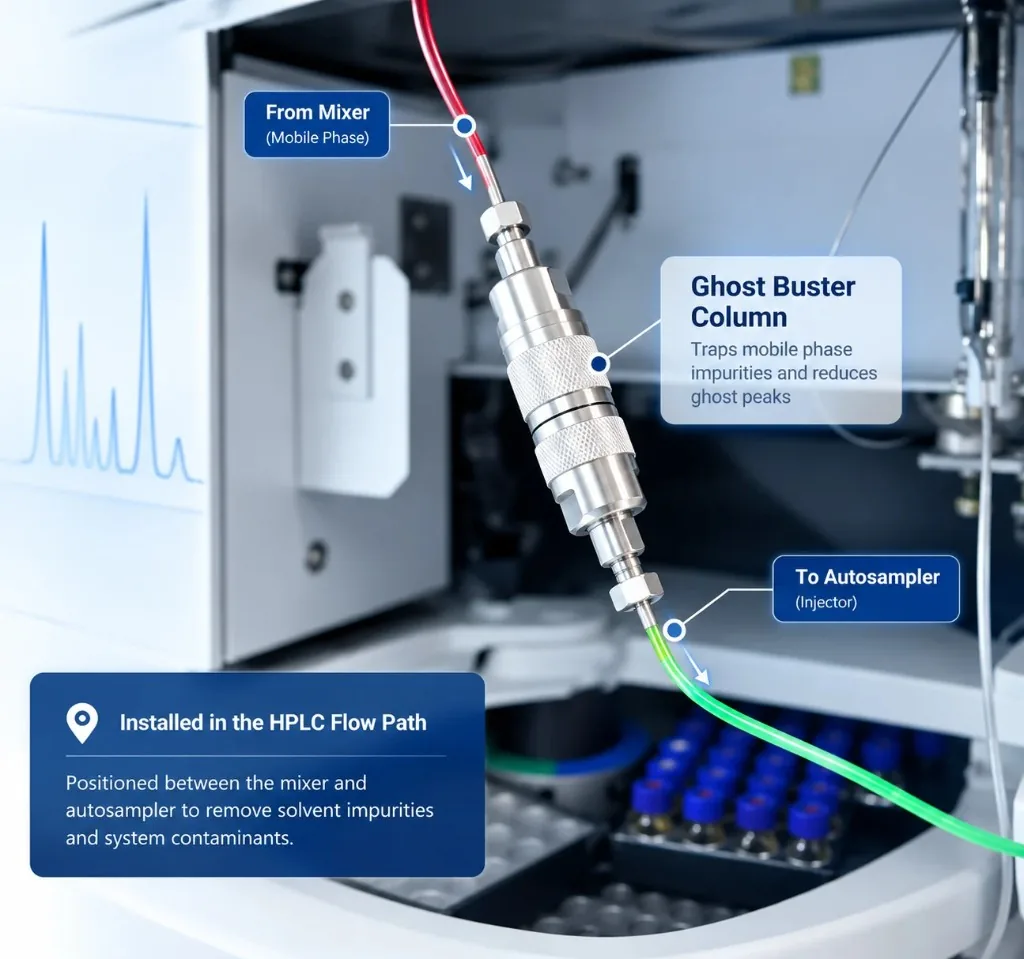

1. Pre-Column Placement:

The Ghost Buster column is installed before the analytical column in the HPLC system. It is a small, short column packed with the same or similar stationary phase material as the analytical column. The main difference is that the Ghost Buster column is not as long as the analytical column.

2. Sample Injection:

When a sample is injected into the HPLC system, it first enters the Ghost Buster column. The sample contains various components, including the analytes of interest and other impurities present in the sample matrix.

3. Contaminant Capture:

As the sample flows through the Ghost Buster column, the stationary phase in the column acts as a filter. It selectively retains and captures the impurities and contaminants present in the sample. These contaminants can include particulates, proteins, salts, and other unwanted substances.

4. Analytes Pass Through:

The analytes of interest, which are the compounds being analyzed in the sample, are relatively smaller and have a higher affinity for the stationary phase in the analytical column. Therefore, they continue to flow through the Ghost Buster column and proceed to the analytical column.

5. Protection of Analytical Column:

By capturing the impurities and contaminants, the Ghost Buster column prevents these substances from reaching the analytical column. As a result, the main analytical column is protected from fouling and damage, improving its performance and prolonging its lifespan.

6. Disposal of Captured Contaminants:

The Ghost Buster column is designed to be disposable or easily replaceable. Once it becomes fouled with captured impurities, it can be disconnected and discarded. Users can then install a new Ghost Buster column to ensure continued protection for the analytical column.

In summary, the Ghost Buster column works as a protective barrier for the analytical column in HPLC. It traps and retains sample matrix impurities and contaminants while allowing the analytes of interest to pass through. By preventing these impurities from reaching the analytical column, the Ghost Buster column enhances column life, improves baseline stability, and ensures more reliable and accurate HPLC results.

Ghost Buster Column Applications for Different Industial

Ghost Buster Column Applications

Ghost Buster columns are valuable tools for analyzing complex samples in a variety of applications. They are widely used in the pharmaceutical, environmental and food industries to remove unwanted matrix components and increase analytical sensitivity. Some of the most common applications for Ghost Buster columns include:

1. Drug Analysis

Ghost Buster columns are widely used in the pharmaceutical industry to remove matrix components from complex samples such as plasma and urine. This helps to increase analytical sensitivity and ensure the accuracy of results. Ghost Buster columns are also used to remove unwanted impurities from APIs during the manufacturing process.

2. Environmental Analysis

Ghost Buster columns are commonly used in environmental analysis to remove interfering matrix components from samples such as water and soil. This helps improve the accuracy and sensitivity of the analysis and ensures reliable and consistent results. Ghost Buster columns are also used to remove unwanted impurities from environmental samples during preparation.

3. Food Analysis

Ghost Buster columns are used in the food industry to remove matrix components from complex food samples such as dairy and meat. This helps improve the accuracy of the analysis and ensures reliable and consistent results. Ghost Buster columns are also used to remove unwanted impurities from food samples during preparation.

4. Forensic Analysis

Ghost Buster columns are used in forensic analysis to remove matrix components from complex samples such as blood and urine. This helps to increase the sensitivity and accuracy of the analysis and ensures reliable and consistent results. Ghost Buster columns are also used to remove unwanted impurities from forensic samples during preparation.

5. Petrochemical Analysis

Ghost Buster columns are used in the petrochemical industry to remove matrix components from complex samples such as crude oil and petroleum products. This helps improve the accuracy and sensitivity of the analysis and ensures reliable and consistent results. Ghost Buster columns are also used to remove unwanted impurities from petrochemical samples during preparation.

in conclusion

Ghost Buster columns are invaluable tools for analyzing complex samples in a variety of applications. They are widely used in the pharmaceutical, environmental, food, forensic and petrochemical industries to remove unwanted matrix components and increase analytical sensitivity. By understanding the application of Ghost Buster chromatographic columns, analysts can choose the appropriate chromatographic column according to their specific needs to ensure the accuracy and reliability of the results.

Frequently Asked Questions

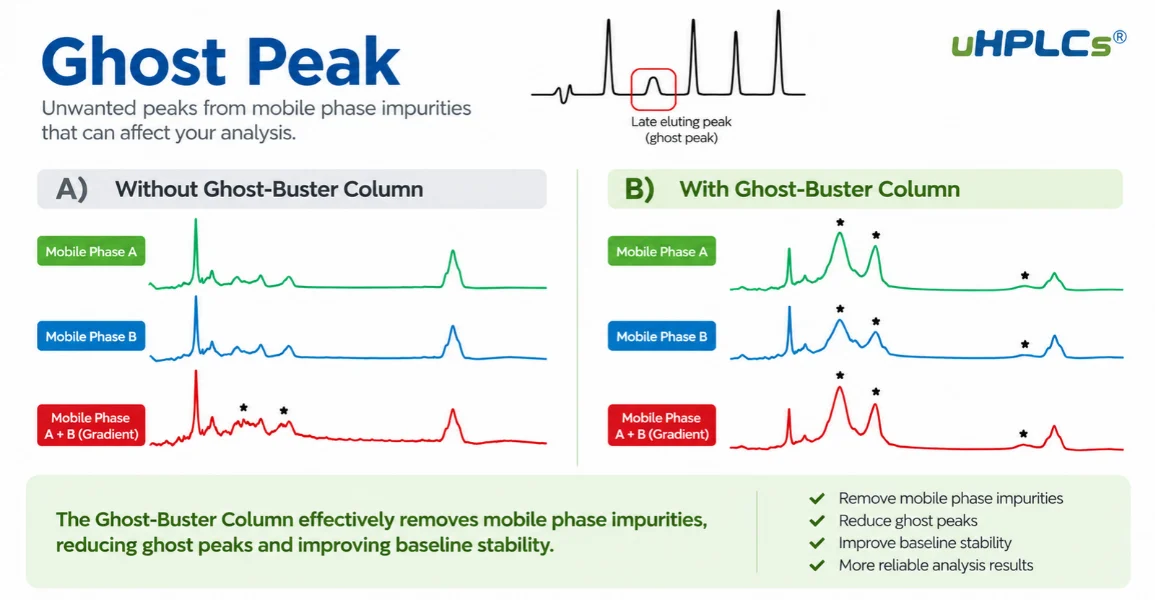

What is Ghost Peak in HPLC ?

In HPLC (High-performance liquid chromatography), a ghost peak is an unexplained peak that appears in the chromatogram, but does not correspond to any known compound in the sample. Ghost peaks can be caused by a number of factors, such as column contamination, sample preparation issues, or instrument problems.

They can also be caused by a low-concentration impurities. Ghost peaks can interfere with the accurate analysis of a sample, and it is important to identify and eliminate the source of the ghost peak to ensure accurate results.

What causes ghost peaks in HPLC?

Ghost peaks in HPLC can arise from multiple sources, each impacting analysis accuracy. Here’s an overview of common causes and practical solutions:

1.Sample Contamination

*Impurities in the Sample:

The sample itself may contain impurities that interfere with analysis, producing ghost peaks.

*Contaminated Glassware or Vials:

Using unclean glassware or vials can introduce unwanted contaminants into the sample.

*Improper Sample Preparation:

Techniques like inadequate filtration or incorrect dilution can introduce particles or contaminants that lead to ghost peaks.

2.Instrument Contamination

*Carryover from Previous Injections: Residual analytes from earlier samples may carry over into subsequent injections, causing ghost peaks.

*Contaminated Autosampler Components: Dirty needles, syringes, or vials in the autosampler can introduce contamination.

*Degraded Pump Seals or Fittings: Worn seals or fittings may release particles or chemicals that contribute to ghost peak formation.

*Contaminated Mobile Phase: Impurities, such as plasticizers in the mobile phase, can also cause ghost peaks.

3.Column Contamination

*Column Bleeding: Degradation of the stationary phase over time may release particles or chemicals, resulting in ghost peaks.

*Particle Shedding: Excessive pressure or stress on the column can cause particles to shed from the packing material, creating ghost peaks.

4.Detector Noise

*Electronic Noise: Electrical interference in the detector can produce small peaks that mimic ghost peaks.

*Light Scattering from Particles: Particles in the mobile phase can scatter light, increasing baseline noise and contributing to ghost peaks.

Minimizing Ghost Peaks in HPLC

To reduce ghost peaks, ensure good laboratory practices by maintaining clean equipment, using high-quality reagents, and optimizing your HPLC system settings.

Regular system maintenance, including cleaning and replacing columns, is also essential for minimizing ghost peaks and improving analysis accuracy.

What is a Ghost Buster Column?

A Ghost Buster Column is a chromatography column used to detect and identify impurities in a sample.

How does a Ghost Buster Column work?

A Ghost Buster Column works by selectively adsorbing impurities in a sample while allowing the desired compounds to pass through. The impurities are then eluted and detected using a detector.

What types of impurities can a Ghost Buster Column detect?

A Ghost Buster Column can detect many impurities, including organic and inorganic compounds, metal ions, and other contaminants.

How is a Ghost Buster Column different from other types of chromatography columns?

A ghost peak column is specifically designed to detect and identify impurities in a sample. Other chromatography columns may be used for other purposes, such as purifying or separating compounds.

What are the advantages of using a Ghost Buster Column?

Some advantages of using a Ghost Buster Column include the ability to detect impurities at low levels, identify unknown impurities, and separate impurities from the desired compounds.

Here we list some and hope you can understand more clear about the advantage of Ghost Buster Column in HPLC system.

Removal of Ghost Peaks: Ghost Buster Columns are designed to remove ghost peaks in chromatography, which can interfere with the analysis.
Longer Column Life: Using a Ghost Buster Column can extend the life of the main column in the HPLC system.
Stable Performance: These columns are stable over a wide range of pH levels, organic solvents, and aqueous buffers.
Easy Installation: Ghost Buster Columns are compatible with all HPLC systems and are easy to install.
Effective Removal of Impurities: Some Ghost Buster Columns can effectively remove low-polarity impurities, preventing interference from various ghost peaks.
Stronger Capturing Effect and More Stable Baseline: Certain Ghost Buster Columns are known for their stronger capturing effect and the ability to provide a more stable baseline in chromatography.
Solving Ghost Peak Problems: Working with Ghost Buster Columns can solve ghost peak problems in uHPLC systems, enhancing the accuracy of analysis.

These advantages make Ghost Buster Columns a valuable tool in HPLC systems, contributing to more accurate and reliable results in chromatographic analysis.

What types of samples can a Ghost Buster Column be used with?

A Ghost Buster Column can be used with a wide range of biological, chemical, and environmental samples.

How is a Ghost Buster Column maintained?

To maintain a Ghost Buster Column, it should be kept clean and stored properly. The column should also be calibrated and checked regularly to ensure proper performance.

How long does it take to run a sample on a Ghost Buster Column?

The time it takes to run a sample on a Ghost Buster Column will depend on the sample and the method used. Typically, the process can take a few minutes to several hours.

What are the most common applications of a Ghost Buster Column?

The most common applications of a Ghost Buster Column include quality control, research and development, and environmental monitoring.

Pharmaceutical Industry: Ghost Buster Columns can be used in the pharmaceutical industry to remove ghost peaks and impurities, ensuring the purity and quality of drugs and other pharmaceutical products.
Petrochemical Industry: In the analysis of complex mixtures of hydrocarbons, Ghost Buster Columns can help in removing unwanted peaks, providing a more accurate analysis.
Food and Beverage Industry: Ensuring the purity and safety of food products may require the removal of ghost peaks in chromatographic analysis. Ghost Buster Columns can be applied in this context.
Environmental Analysis: In the assessment of environmental samples, Ghost Buster Columns can be used to remove ghost peaks, providing more accurate data on pollutants and contaminants.
Chemical Manufacturing: In the production of various chemicals, Ghost Buster Columns can be used to ensure the purity of the final product by removing ghost peaks and other interferences.
Research and Development: Ghost Buster Columns can be applied in R&D labs for various industries to enhance the accuracy and reliability of chromatographic analysis.

These applications are inferred based on the general functions and advantages of Ghost Buster Columns. For more specific and detailed information about industrial applications, it may be necessary to consult specialized literature or contact manufacturers and suppliers of Ghost Buster Columns directly. If you would like me to take any further actions, please let me know!

Are there any limitations to using a Ghost Buster Column?

Some limitations of using a Ghost Buster Column include the cost of the column and the need for skilled operators to run the column and interpret the results. Some impurities may be difficult to detect or elute using a ghost peak column.
