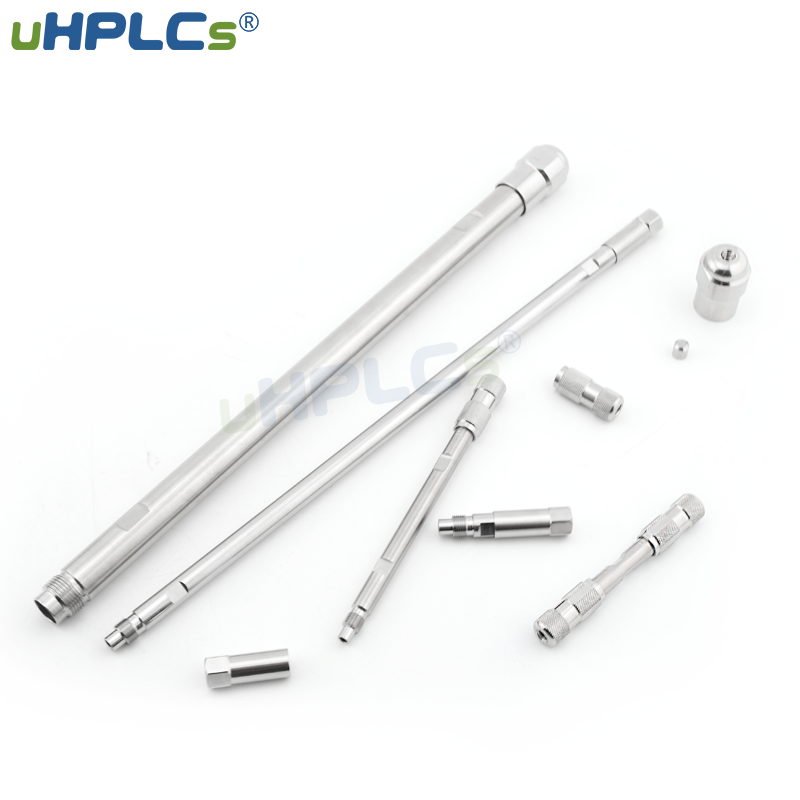

USHD PFP HPLC Analytical Column
The USHD PFP HPLC Analytical Column features an ultra-pure silica matrix bonded with a pentafluorophenyl (PFP) stationary phase, offering versatile selectivity across multiple interaction modes. It is ideal for separating aromatic and halogenated compounds, protonated amines, quaternary ammonium compounds, and various isomers, making it a reliable choice for biopharmaceutical, environmental, and natural product analysis.
Have questions or need pricing?
Send us your enquiry today, and our team will be happy to assist you!
Features:
USHD C18-T HPLC Column – Key Features
- Pentafluorophenyl (PFP) Bonded Phase: Provides unique selectivity with enhanced π-π, dipole-dipole, and ion-exchange interactions.
- Multi-Mode Compatibility: Supports hydrophobic, ion exchange, HILIC, and other separation mechanisms for broad application versatility.
- Excellent Separation Performance: Optimized for aromatic, halogenated, protonated, and nitrogen-containing compounds, including structural isomers.
- Wide Analytical Applications: Ideal for use in biopharmaceutical research, environmental monitoring, and natural product analysis.
- High Stability & Reproducibility: Built on ultra-pure silica for consistent performance across different sample types.
Specifications
| Property | USHD PFP |
|---|---|
| USP | L43 |
| Pore Size Option | 5 µm, 120 Å |
| Surface Area (m²/g) | 320 |
| Carbon Load (%) | 10 |
| pH Tolerance Range | 0.5-8 |
| Column Specifications | 4.6 × 250 mm 4.6 × 150 mm 4.6 × 100 mm 4.6 × 50 mm 3.0 × 100 mm 3.0 × 50 mm 2.1 × 100 mm 2.1 × 50 mm |
| Features and Applications |
|
Analytical column, C18 bonded phase, C18 chromatography, C18 column, C18 HPLC column, C18 stationary phase, Chromatography column, Column packing material, High performance liquid chromatography, HPLC analysis, HPLC column, HPLC separation, Liquid chromatography column, Reverse phase column, Silica-based column
Column body
This is a measure of the distribution of particles packed in a column. In HPLC, it is preferable to have narrow particle size distribution as a narrow particle size distribution can lead to better HPLC column efficiency.
Endcap
In LC chromatography the reaction of a silylating agent with unreacted accessible silanols remaining on the silica gel surface after the initial bonding reaction of the HPLC column stationary phase. HPLC column endcapping eliminates unwanted secondary silanol interactions between compounds and the stationary phase.
PEEK frit
Longer filtration life
Consistent frit-to-frit swept volumes
Biocompatible and inert to most solvents
Suitable for low and high pressure applications.
Enhanced sealing and excellent chemical resistance.
PEEK frits can be used up to 80 ºC.
All Hot Sale HPLC Columns
Select ideal HPLC column for your lab applications based on factors like separation efficiency, pore size, pH tolerance, and specifications.
| Item | USP | Pore Size Option | Surface area (m²/g) | Carbon Load (%) | PH Tolerance Range | Column Specifications |
|---|---|---|---|---|---|---|
|
USHD C18-Pro |
L1 |
5μm, 150A 3.5μm, 150A |
200 |
10 |
2-8 |
4.6X250mm 4.6X150mm 4.6X100mm 4.6X50mm 3.0X100mm 3.0X50mm 2.1X100mm 2.1X50mm |
|
USHD C18 |
L1 |
5μm, 120A 3μm, 120A 1.8μm, 120A |
320 |
17 |
2-8 |
4.6X250mm 4.6X150mm 4.6X100mm 4.6X50mm 3.0X100mm 3.0X50mm 2.1X100mm 2.1X50mm |
|
USHD C18-AQ |
L1 |
5μm, 120A 3μm, 120A 1.8μm, 120A |
320 |
12 |
2-8 |
4.6X250mm 4.6X150mm 4.6X100mm 4.6X50mm 3.0X100mm 3.0X50mm 2.1X100mm 2.1X50mm |
|
USHD C18-AR |
L1 |
5μm, 120A 3μm, 120A 1.8μm, 120A |
320 |
10 |
0.5-8 |
4.6X250mm 4.6X150mm 4.6X100mm 4.6X50mm 3.0X100mm 3.0X50mm 2.1X100mm 2.1X50mm |
|
USHD C18-T |
L1 |
5μm, 120A 3μm, 120A 1.8μm, 120A |
320 |
14 |
1-11 |
4.6X250mm 4.6X150mm 4.6X100mm 4.6X50mm 3.0X100mm 3.0X50mm 2.1X100mm 2.1X50mm |
|
USHD C8-PRO |
L7 |
5μm, 150A 3.5μm, 150A |
200 |
7 |
2-8 |
4.6X250mm 4.6X150mm 4.6X100mm 4.6X50mm 3.0X100mm 3.0X50mm 2.1X100mm 2.1X50mm |
|
USHD C8 |
L7 |
5μm, 150A 3.5μm, 120A 1.8μm, 120A |
320 |
12 |
2-8 |
4.6X250mm 4.6X150mm 4.6X100mm 4.6X50mm 3.0X100mm 3.0X50mm 2.1X100mm 2.1X50mm |
Analytical and Semi-Prep HPLC Column Size Option
Specification（ Customizable）/ Size | Materials | Applications |
USHD C18-Pro ×30mm ; 2.1×50mm ; 2.1×75mm ; 2.1×100mm ; 2.1×125mm ; 2.1×150mm; 2.1×200mm ; 2.1×250mm ; 2.1×300mm | 316L Stainless Steel | Analytical |
3.0 ×30mm ; 3.0×50mm ; 3.0×75mm ; 3.0×100mm ; 3.0×125mm ; 3.0×150mm ； 3.0×200mm ; 3.0×250mm ; 3.0×300mm ; | 316L Stainless Steel | Analytical |
4.0×20mm ; 4.0×30mm ; 4.0×50mm ; 4.0×100mm 4.0×150mm ; ; 4.0×200mm； 4.0×250mm ; 4.0×300mm | 316L Stainless Steel | Analytical |
4.6×20mm ; 4.6×30mm ; 4.6×50mm ; 4.6×100mm 4.6×150mm ; 4.6×200mm ; 4.6×250mm ; 4.6×300mm | 316L Stainless Steel | Analytical |
7.8×150mm ; 7.8×250mm ; 7.8×300mm | 316L Stainless Steel | Semi-prep |
10×50mm ; 10×100mm ; 10×150mm 10×200mm ; 10×250mm ; 10×300mm | 316L Stainless Steel | Semi-prep |
20×50mm ; 20×100mm ; 20×150mm ; 20×200mm 20×250mm ; 20×300mm | 316L Stainless Steel | Semi-prep |
21.2×150mm ; 21.2× 250mm | 316L Stainless Steel | Semi-prep |
